Araknis Networks AN-SFP-10-D-3 SFP+ Transceiver Module, DAC Connector, 10Gbps, 3m

Brand: Araknis Networks
N.º ADI #:AN-SFP-10-D-3 modelo #: AN-SFP-10-D-3  Nombre: Araknis Networks AN-SFP-10-D-3 SFP+ Transceiver Module, DAC Connector, 10Gbps, 3m
  • SFP+ 10Gbps high-speed data transfer speeds
  • Data transfer up to 3 meters over DAC cable
  • Available in 1m or 3m lengths

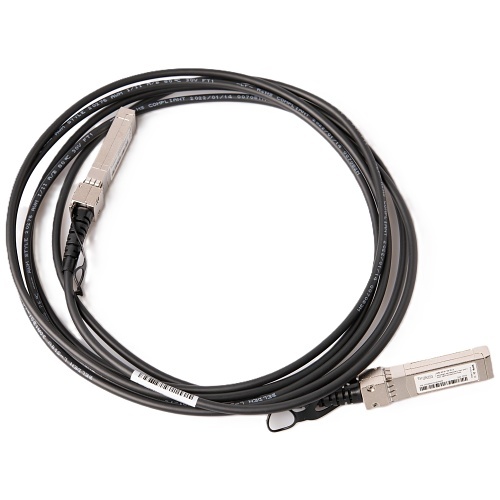

Image of AN-SFP-10-D-3

Descripción del producto

General Información

This Araknis Networks® Accessory Small Form Plug Plus (SFP+) Transceiver Module is optimized for use with Araknis switches. The transceiver module is available in 1m or 3m options with Passive Copper DAC (Direct Attach Cable) that is designed for server racks requiring high-speed data transfers over shorter distances. With pull-to-release latches, swapping out ports is quick and easy when working with server racks.

Características principales
  • SFP+ 10Gbps high-speed data transfer speeds
  • Data transfer up to 3 meters over DAC cable
  • Available in 1m or 3m lengths
  • Designed for best usage with Araknis Networks switches
  • Designed for use with 30AWG DAC copper wire
  • Supports data speeds up to 10Gbps
  • Simple and easy plug-and-play installation
  • Hot swappable port changing
  • Durable metallic enclosure
  • 2-Year Limited Warranty
Información
Categoría : Conversores Y Transceptores, Módulos SFP, Networking, Productos, Soluciones de Red, Videovigilancia
Código EAN : 0842822065184

Especificaciones

Información General

Código de Fabricante
AN-SFP-10-D-3
Nombre de Marca
Araknis Networks
peso
0.14kg
Referencia de ADI
AN-SFP-10-D-3
Tipo de Producto
Accessory

Información Técnica

Calibre americano de cables
30AWG

Características Físicas

Dimensiones
3000mm x 12mm x 13,56 mm

Certificaciones

Marcado CE
Compliant

Condiciones Ambientales

Temperatura de almacenamiento (T-T)
-40- 85°C
Temperatura de funcionamiento (T-T)
-20-85°C

Formato / Prestaciones

Ratio de Transferencia de Datos
10 Gbps

Garantía

Garantía limitada
2 años

Información del Producto

Longitud
3m

Interfaces/Puertos

Tipo de Conector
DAC
