Altronix NETWAYSP1BTWP Single 1G Fiber Optic SFP, Single Port 10/100/1000 802.3bt 4PPoE, Hardened 120W Power Supply / Battery Charger and Media Converter Mounted in IP66 Rated Outdoor Enclosure

Brand: Altronix
N.º ADI #:NETWAYSP1BTWP modelo #: NETWAYSP1BTWP  Nombre: Altronix NETWAYSP1BTWP Single 1G Fiber Optic SFP, Single Port 10/100/1000 802.3bt 4PPoE, Hardened 120W Power Supply / Battery Charger and Media Converter Mounted in IP66 Rated Outdoor Enclosure
  • Single 1G Fiber Optic SFP port
  • Supports 10/100/1000 Ethernet speeds
  • 802.3bt 4PPoE up to 90W power output

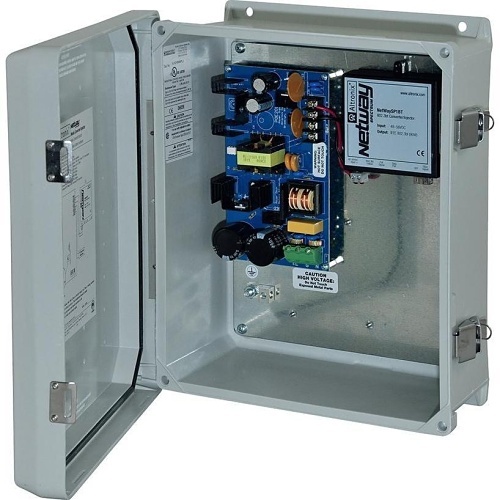

Image of NETWAYSP1BTWP

Descripción del producto

General Información

Altronix NetWaySP1BTWP Outdoor 802.3bt media converter / injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Units can be deployed with structured cable, conventional single / multimode fiber or composite cable (fiber copper combined). Cameras/edge devices may be located up to 100m from the unit.

Características principales
  • Single 1G Fiber Optic SFP port
  • Supports 10/100/1000 Ethernet speeds
  • 802.3bt 4PPoE up to 90W power output
  • Hardened 120W power supply and battery charger
  • IP66 rated for outdoor use
  • Compatible with single/multimode fiber
  • Supports up to 100m distance for cameras/devices
Información
Categoría : Dispositivos PoE, Inyectores PoE, Networking, Productos, Soluciones de Red, Videovigilancia
Código EAN : 782239962471

Especificaciones

Información General

Código de Fabricante
NETWAYSP1BTWP
Fabricante
Altronix
Modelo de Producto
NETWAYSP1BTWP
Nombre de Marca
Altronix
Nombre de Producto
Single 1G Fiber Optic SFP, single port 10/100/1000 802.3bt 4PPoE (90W max), Hardened 120W Power Supply/BatChr & Media Converter mounted in NEMA4/4X, IP66 rated Outdoor enclosure
Referencia de ADI
NETWAYSP1BTWP
Tipo de Producto
Conmutador

Características Físicas

Altura
338 mm
Anchura
287 mm
Peso (Aproximado)
4,76 kg
Profundidad
142 mm

Certificaciones

Marcado CE
Compliant
