AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28VCC or 24VCA, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power.
24VCA can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras.

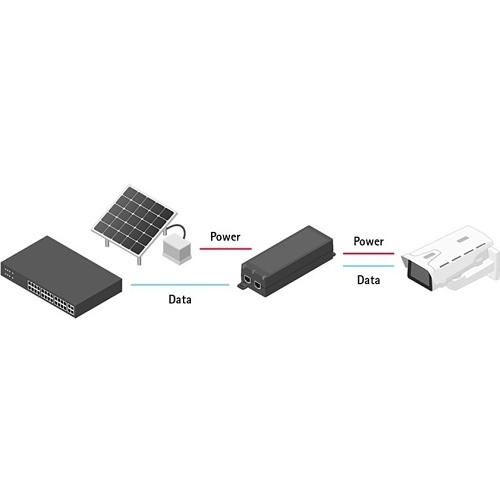

10-28VCC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
EMC:
EN 550 24, IEC 60068- 2- 6, IEC 60068- 2- 78, IEC/EN/UL 62368- 1Environment:
IEC 60068- 2- 1, IEEE 802.3af, IEEE 802.3atSafety:, IS 13252, KC KN32 Class A, KC KN35, RCMAS/NZS, VCCI Class A
